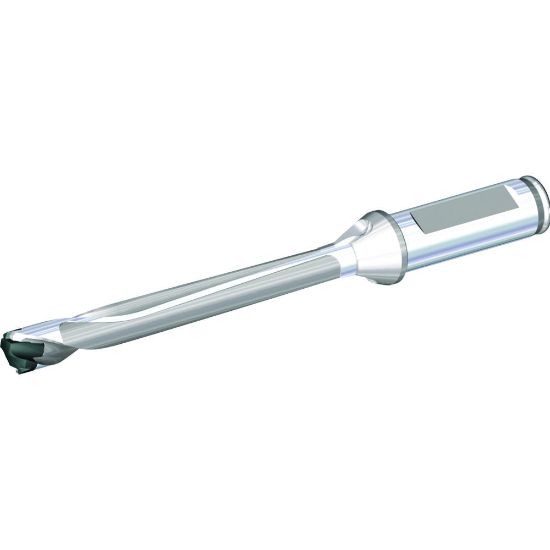

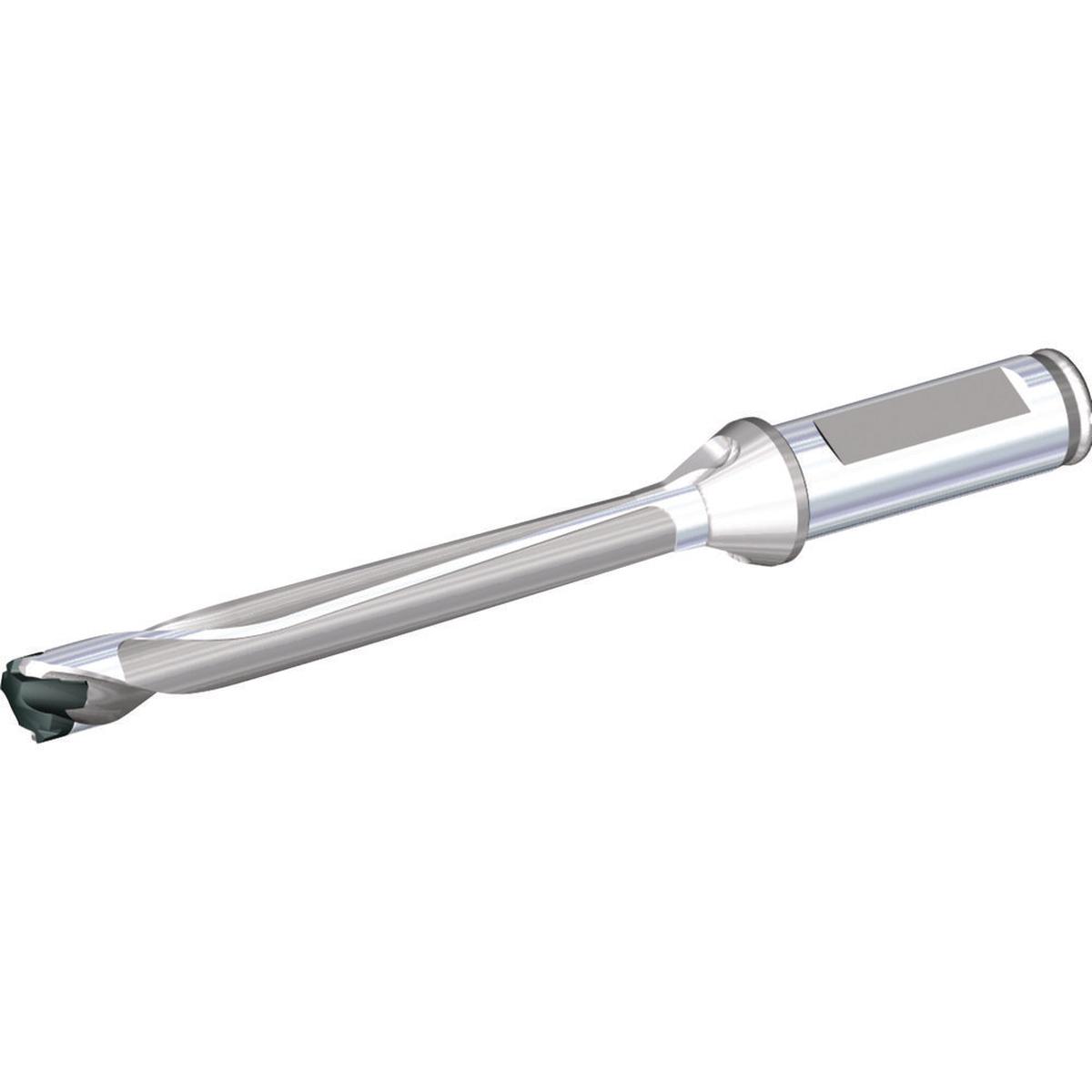

Sveder Top-Drill M1, 8xD, Widia

Skupna šifra: Top-Drill_M1_8xD

L1_mm:

Želite sočasno naročiti več različic tega izdelka? Pojdi nahiter vnos

Pošljite povpraševanje za ta izdelek.

Vas zanimajo pogoji dostave?

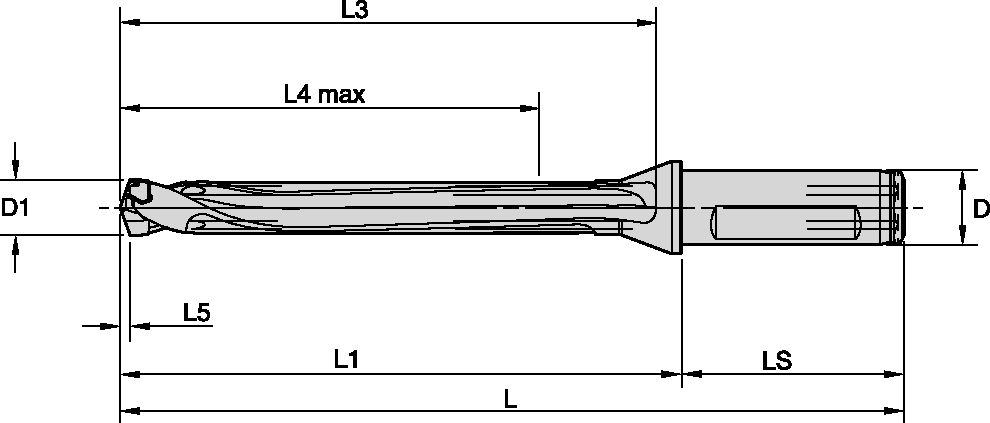

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	16	12,49	12	TDM120R8SCF16M	169	121	116	100	2,1	48	W18	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	20	15,99	15	TDM150R8SCF20M	204	154	148	128	2,7	50	W24	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	25	18,99	18	TDM180R8SCF25M	238	182	176	152	2,9	56	W27	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	25	24,99	24	TDM240R8SCF25M	293	237	231	200	4,2	56	W33	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	20	16,99	16	TDM160R8SCF20M	213	163	157	136	2,8	50	W25	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	16	13,49	13	TDM130R8SCF16M	178	130	125	108	2,3	48	W20	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	25	20,99	20	TDM200R8SCF25M	256	200	194	168	3,6	56	W29	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	25	22,99	22	TDM220R8SCF25M	275	219	213	184	3,9	56	W31	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	16	14,49	14	TDM140R8SCF16M	188	140	135	116	2,5	48	W22	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	20	17,99	17	TDM170R8SCF20M	223	173	167	144	3	50	W26	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	25	19,99	19	TDM190R8SCF25M	247	191	185	160	3,4	56	W28	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	16	11,49	11	TDM110R8SCF16M	160	112	107	92	2	48	W16	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	16	11,99	11,5	TDM115R8SCF16M	165	117	111	96	2,1	48	W17	Widia

D mm	D1 max mm	D1 mm	Iso kat ID	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
16	10,99	10,5	TDM105R8SCF16M	156	108	102	88	1,9	48	W15	Widia

D mm	D1 max mm	D1 mm	Iso kat ID	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
16	13,99	13,5	TDM135R8SCF16M	184	136	130	112	2,4	48	W21	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	16	14,99	14,5	TDM145R8SCF16M	193	145	139	120	2,6	48	W23	Widia

D mm	D1 max mm	D1 mm	Iso kat ID	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
16	12,99	12,5	TDM125R8SCF16M	174	126	120	104	2,2	48	W19	Widia

D mm	D1 max mm	D1 mm	Iso kat ID	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
12	8,99	8,5	TDM085R8SCF12M	134	89	83	72	1,5	45	W11	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	16	10,49	10	TDM100R8SCF16M	151	103	98	84	1,8	48	W14	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	12	9,49	9	TDM090R8SCF12M	138	93	88	76	1,6	45	W12	Widia

D mm	D1 max mm	D1 mm	Iso kat ID	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
12	9,99	9,5	TDM095R8SCF12M	144	99	93	80	1,7	45	W13	Widia

D mm	D1 max mm	D1 mm	Iso kat ID	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
12	8,49	7,94	TDM080R8SCF12M	129	84	79	68	1,4	45	W10	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	25	23,99	23	TDM230R8SCF25M	284	228	222	192	4,1	56	W32	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	25	25,99	25	TDM250R8SCF25M	303	247	241	208	4,4	56	W34	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	25	21,99	21	TDM210R8SCF25M	266	210	204	176	3,7	56	W30	Widia

Ogled vseh različic

Vas zanimajo pogoji dostave?

Podrobnosti o izdelku

Specifikacije

Dokumentacija

Zaloga	DA
D mm	12, 16, 20, 25
D1 max mm	8,49, 8,99, 9,49, 9,99, 10,49, 10,99, 11,49, 11,99, 12,49, 12,99, 13,49, 13,99, 14,49, 14,99, 15,99, 16,99, 17,99, 18,99, 19,99, 20,99, 21,99, 22,99, 23,99, 24,99, 25,99
D1 mm	7,94, 8,5, 9, 9,5, 10, 10,5, 11, 11,5, 12, 12,5, 13, 13,5, 14, 14,5, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25
Iso kat ID	TDM080R8SCF12M, TDM085R8SCF12M, TDM090R8SCF12M, TDM095R8SCF12M, TDM100R8SCF16M, TDM105R8SCF16M, TDM110R8SCF16M, TDM115R8SCF16M, TDM120R8SCF16M, TDM125R8SCF16M, TDM130R8SCF16M, TDM135R8SCF16M, TDM140R8SCF16M, TDM145R8SCF16M, TDM150R8SCF20M, TDM160R8SCF20M, TDM170R8SCF20M, TDM180R8SCF25M, TDM190R8SCF25M, TDM200R8SCF25M, TDM210R8SCF25M, TDM220R8SCF25M, TDM230R8SCF25M, TDM240R8SCF25M, TDM250R8SCF25M
L mm	129, 134, 138, 144, 151, 156, 160, 165, 169, 174, 178, 184, 188, 193, 204, 213, 223, 238, 247, 256, 266, 275, 284, 293, 303
L1_mm	84, 89, 93, 99, 103, 108, 112, 117, 121, 126, 130, 136, 140, 145, 154, 163, 173, 182, 191, 200, 210, 219, 228, 237, 247
L3 mm	79, 83, 88, 93, 98, 102, 107, 111, 116, 120, 125, 130, 135, 139, 148, 157, 167, 176, 185, 194, 204, 213, 222, 231, 241
L4 max mm	68, 72, 76, 80, 84, 88, 92, 96, 100, 104, 108, 112, 116, 120, 128, 136, 144, 152, 160, 168, 176, 184, 192, 200, 208
L5 mm	1,4, 1,5, 1,6, 1,7, 1,8, 1,9, 2, 2,1, 2,2, 2,3, 2,4, 2,5, 2,6, 2,7, 2,8, 3, 2,9, 3,4, 3,6, 3,7, 3,9, 4,1, 4,2, 4,4
LS	45, 48, 50, 56
SSC	W10, W11, W12, W13, W14, W15, W16, W17, W18, W19, W20, W21, W22, W23, W24, W25, W26, W27, W28, W29, W30, W31, W32, W33, W34
Znamka	Widia

Izberite različico

Išči:

L1_mm:

LS:

D mm:

L mm:

D1 mm:

SSC:

Iso kat ID:

D1 max mm:

L4 max mm:

L5 mm:

L3 mm:

Šifra	Naziv	L1_mm	LS	D mm	L mm	D1 mm	SSC	Iso kat ID	D1 max mm	L4 max mm	L5 mm	L3 mm	Cena	V košarico
3992141	TDM080R8SCF12M WG	84	45	12	129	7,94	W10	TDM080R8SCF12M	8,49	68	1,4	79	Redna cena: 273,95 € brez DDV	Prijavite se za nakup Zaloga pri dobavitelju
3992142	TDM085R8SCF12M WG	89	45	12	134	8,5	W11	TDM085R8SCF12M	8,99	72	1,5	83	Redna cena: 273,95 € brez DDV	Prijavite se za nakup Zaloga pri dobavitelju
3992213	SVEDER TOP-DRILL M1 8xD D9,0-9,49mm TDM090R8SCF12M	93	45	12	138	9	W12	TDM090R8SCF12M	9,49	76	1,6	88	Redna cena: 273,95 € brez DDV	Prijavite se za nakup Na zalogi
3992214	TDM095R8SCF12M WG	99	45	12	144	9,5	W13	TDM095R8SCF12M	9,99	80	1,7	93	Redna cena: 273,95 € brez DDV	Prijavite se za nakup Zaloga pri dobavitelju
3992215	SVEDER TOP-DRILL M1 8xD D10,0-10,49mm TDM100R8SCF16M	103	48	16	151	10	W14	TDM100R8SCF16M	10,49	84	1,8	98	Redna cena: 273,95 € brez DDV	Prijavite se za nakup Na zalogi
3992216	SVEDER TOP-DRILL M1 8xD D10,50-10,99mm TDM105R8SCF16M	108	48	16	156	10,5	W15	TDM105R8SCF16M	10,99	88	1,9	102	Redna cena: 306,36 € brez DDV	Prijavite se za nakup Zaloga pri dobavitelju
3992217	SVEDER TOP-DRILL M1 8xD D11,0-11,50mm TDM110R8SCF16M	112	48	16	160	11	W16	TDM110R8SCF16M	11,49	92	2	107	Redna cena: 306,36 € brez DDV	Prijavite se za nakup Na zalogi
3992218	SVEDER TDM1 8xD D11,50-11,99mm TDM115R8SCF16M	117	48	16	165	11,5	W17	TDM115R8SCF16M	11,99	96	2,1	111	Redna cena: 306,36 € brez DDV	Prijavite se za nakup Na zalogi
3992219	SVEDER TOP-DRILL M1 8xD D12,0-12,49mm TDM120R8SCF16M	121	48	16	169	12	W18	TDM120R8SCF16M	12,49	100	2,1	116	Redna cena: 306,36 € brez DDV	Prijavite se za nakup Na zalogi
3992220	SVEDER TOP-DRILL M1 8xD D12,50-12,99mm TDM125R8SCF16M	126	48	16	174	12,5	W19	TDM125R8SCF16M	12,99	104	2,2	120	Redna cena: 333,89 € brez DDV	Prijavite se za nakup Zaloga pri dobavitelju
