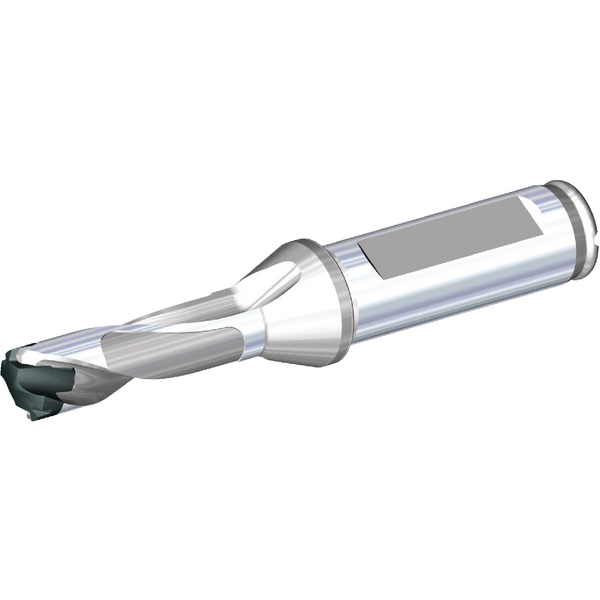

Sveder TDM , TOP-DRILL M1 3xD, Widia

Skupna šifra: TDM_TOP_DRILL_M1_3xD

L1_mm:

Želite sočasno naročiti več različic tega izdelka? Pojdi nahiter vnos

Pošljite povpraševanje za ta izdelek.

Vas zanimajo pogoji dostave?

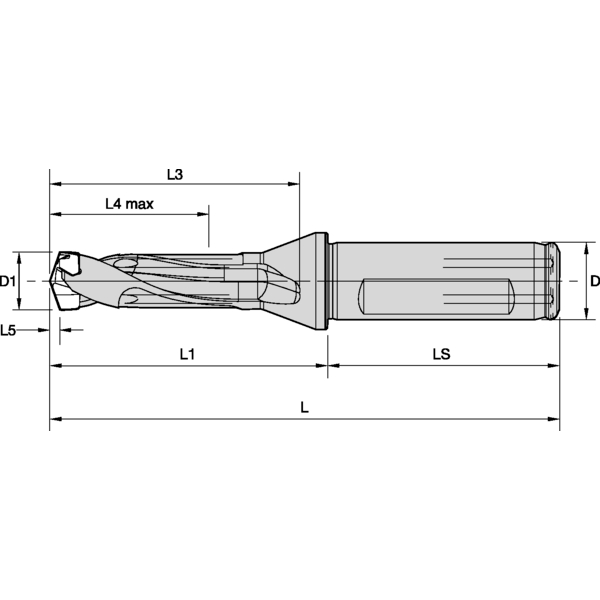

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	Kvaliteta	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	25	18,99	18	TDM180R3SCF25M	WG	141	85	79	57	3,4	56	W27	Widia

Zaloga	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka	D mm	D1 max mm	D1 mm	Iso kat ID	Kvaliteta	L mm	L1_mm
DA	108	78	4,4	56	W34	Widia	25	25,99	25	TDM250R3SCF25M	WG	170	114

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	Kvaliteta	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	25	22,99	22	TDM220R3SCF25M	WG	158	102	96	69	3,9	56	W31	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	Kvaliteta	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	25	20,99	20	TDM200R3SCF25M	WG	149	93	87	63	3,8	56	W29	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	Kvaliteta	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	25	24,99	24	TDM240R3SCF25M	WG	166	110	104	75	4,2	56	W33	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	Kvaliteta	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	20	16,99	16	TDM160R3SCF20M	WG	126	76	70	51	3	50	W25	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	Kvaliteta	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	25	19,99	19	TDM190R3SCF25M	WG	144	89	83	60	3,6	56	W28	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	Kvaliteta	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	20	17,99	17	TDM170R3SCF20M	WG	131	81	75	54	3,2	50	W26	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	Kvaliteta	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	16	13,99	13,5	TDM135R3SCF16M	WG	112	64	58	42	2,6	48	W21	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	Kvaliteta	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	16	12,49	12	TDM120R3SCF16M	WG	106	58	52	38	2,3	48	W18	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	Kvaliteta	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	16	10,49	10	TDM100R3SCF16M	WG	97	49	43	32	1,9	48	W14	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	Kvaliteta	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	16	14,49	14	TDM140R3SCF16M	WG	114	66	60	44	2,7	48	W22	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	Kvaliteta	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	16	14,99	14,5	TDM145R3SCF16M	WG	116	68	62	45	2,8	48	W23	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	Kvaliteta	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	16	10,99	10,5	TDM105R3SCF16M	WG	99	51	45	33	2	48	W15	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	Kvaliteta	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	25	21,99	21	TDM210R3SCF25M	WG	153	97	91	66	3,7	56	W30	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	Kvaliteta	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	16	11,99	11,5	TDM115R3SCF16M	WG	103	55	49	36	2,2	48	W17	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	Kvaliteta	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	12	8,49	7,94	TDM080R3SCF12M	WG	86	41	35	26	1,5	45	W10	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	Kvaliteta	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	12	8,99	8,5	TDM085R3SCF12M	WG	88	43	37	27	1,6	45	W11	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	Kvaliteta	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	16	12,99	12,5	TDM125R3SCF16M	WG	108	60	54	39	2,4	48	W19	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	Kvaliteta	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	16	13,49	13	TDM130R3SCF16M	WG	110	62	56	41	2,5	48	W20	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	Kvaliteta	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	25	23,99	23	TDM230R3SCF25M	WG	162	106	100	72	4,1	56	W32	Widia

D mm	D1 max mm	D1 mm	Iso kat ID	Kvaliteta	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
12	9,99	9,5	TDM095R3SCF12M	WG	92	47	41	30	1,8	45	W13	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	Kvaliteta	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	12	9,49	9	TDM090R3SCF12M	WG	90	45	39	29	1,7	45	W12	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	Kvaliteta	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	16	11,49	11	TDM110R3SCF16M	WG	101	53	47	35	2,1	48	W16	Widia

Zaloga	D mm	D1 max mm	D1 mm	Iso kat ID	Kvaliteta	L mm	L1_mm	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka
DA	20	15,99	15	TDM150R3SCF20M	WG	122	72	66	48	2,8	50	W24	Widia

Ogled vseh različic

Vas zanimajo pogoji dostave?

Podrobnosti o izdelku

Specifikacije

Dokumentacija

Specifikacije

Zaloga	L3 mm	L4 max mm	L5 mm	LS	SSC	Znamka	D mm	D1 max mm	D1 mm	Iso kat ID	Kvaliteta	L mm	L1_mm
DA	108, 35, 37, 39, 41, 43, 45, 47, 49, 52, 54, 56, 58, 60, 62, 66, 70, 75, 79, 83, 87, 91, 96, 100, 104	78, 26, 27, 29, 30, 32, 33, 35, 36, 38, 39, 41, 42, 44, 45, 48, 51, 54, 57, 60, 63, 66, 69, 72, 75	4,4, 1,5, 1,6, 1,7, 1,8, 1,9, 2, 2,1, 2,2, 2,3, 2,4, 2,5, 2,6, 2,7, 2,8, 3, 3,2, 3,4, 3,6, 3,8, 3,7, 3,9, 4,1, 4,2	56, 45, 48, 50	W34, W10, W11, W12, W13, W14, W15, W16, W17, W18, W19, W20, W21, W22, W23, W24, W25, W26, W27, W28, W29, W30, W31, W32, W33	Widia	12, 16, 20, 25	8,49, 8,99, 9,49, 9,99, 10,49, 10,99, 11,49, 11,99, 12,49, 12,99, 13,49, 13,99, 14,49, 14,99, 15,99, 16,99, 17,99, 18,99, 19,99, 20,99, 21,99, 22,99, 23,99, 24,99, 25,99	7,94, 8,5, 9, 9,5, 10, 10,5, 11, 11,5, 12, 12,5, 13, 13,5, 14, 14,5, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25	TDM080R3SCF12M, TDM085R3SCF12M, TDM090R3SCF12M, TDM095R3SCF12M, TDM100R3SCF16M, TDM105R3SCF16M, TDM110R3SCF16M, TDM115R3SCF16M, TDM120R3SCF16M, TDM125R3SCF16M, TDM130R3SCF16M, TDM135R3SCF16M, TDM140R3SCF16M, TDM145R3SCF16M, TDM150R3SCF20M, TDM160R3SCF20M, TDM170R3SCF20M, TDM180R3SCF25M, TDM190R3SCF25M, TDM200R3SCF25M, TDM210R3SCF25M, TDM220R3SCF25M, TDM230R3SCF25M, TDM240R3SCF25M, TDM250R3SCF25M	WG	86, 88, 90, 92, 97, 99, 101, 103, 106, 108, 110, 112, 114, 116, 122, 126, 131, 141, 144, 149, 153, 158, 162, 166, 170	41, 43, 45, 47, 49, 51, 53, 55, 58, 60, 62, 64, 66, 68, 72, 76, 81, 85, 89, 93, 97, 102, 106, 110, 114

Izberite različico

Išči:

L1_mm:

LS:

D mm:

L mm:

D1 mm:

SSC:

Iso kat ID:

D1 max mm:

L4 max mm:

L5 mm:

L3 mm:

Šifra	Naziv	L1_mm	LS	D mm	L mm	D1 mm	SSC	Iso kat ID	D1 max mm	L4 max mm	L5 mm	L3 mm
3850904	SVEDER TDM1 3xD D7,94-8,49mm TDM080R3SCF12M WG	41	45	12	86	7,94	W10	TDM080R3SCF12M	8,49	26	1,5	35
3850906	SVEDER TDM1 3xD D8,50-8,99mm Widia	43	45	12	88	8,5	W11	TDM085R3SCF12M	8,99	27	1,6	37
3850908	SVEDER TOP-DRILL M1 3xD D9,00-9,49mm TDM090R3SCF12M WG	45	45	12	90	9	W12	TDM090R3SCF12M	9,49	29	1,7	39
3850910	TDM095R3SCF12M WG	47	45	12	92	9,5	W13	TDM095R3SCF12M	9,99	30	1,8	41
3850912	SVEDER TOP-DRILL M1 3xD D10,0-10,49mm TDM100R3SCF16M	49	48	16	97	10	W14	TDM100R3SCF16M	10,49	32	1,9	43
3850924	SVEDER TOP-DRILL M1 3xD D10,50-10,99mm TDM105R3SCF16M	51	48	16	99	10,5	W15	TDM105R3SCF16M	10,99	33	2	45
3850926	SVEDER TOP-DRILL M1 3xD D11,00-11,49mm TDM110R3SCF16M	53	48	16	101	11	W16	TDM110R3SCF16M	11,49	35	2,1	47
3850928	SVEDER TOP-DRILL M1 3xD D11,50-11,99mm TDM115R3SCF16M	55	48	16	103	11,5	W17	TDM115R3SCF16M	11,99	36	2,2	49
3850930	SVEDER TOP-DRILL M1 3xD D12,0-12,49mm TDM120R3SCF16M	58	48	16	106	12	W18	TDM120R3SCF16M	12,49	38	2,3	52
3850932	SVEDER TOP-DRILL M1 3xD D12,50-12,99mm TDM125R3SCF16M	60	48	16	108	12,5	W19	TDM125R3SCF16M	12,99	39	2,4	54
